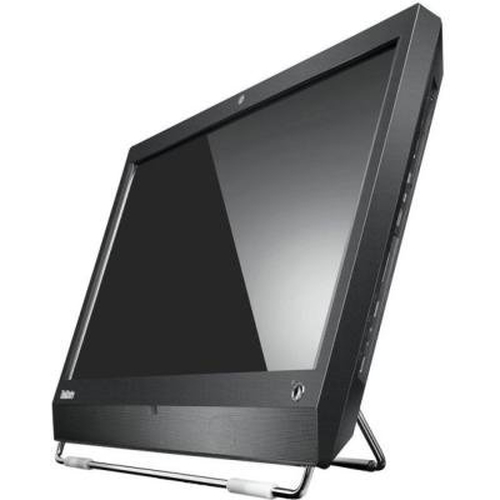

Lenovo ThinkCentre M90z
Product Description
Add to FavoritesSummary
Model Lenovo ThinkCentre M90z, 58.4 cm (23"), Intel® Core™ i5, 4 GB, 500 GB, Windows 7 Professional, Black Price $0.00 Categories Computers All-in-One PCs/Workstations Lenovo Manufacturer Lenovo Product Number 0870A6U Add to CartFeatures
Tame workplace clutter.
Crowded work areas beg for the ThinkCentre M90z. It combines the monitor with the central unit, resulting in a smaller PC footprint and less cable clutter. For an even tidier workspace, add an optional wireless keyboard and mouse.
The traditional frame stand adjusts to between a 15- and 45-degree viewing angle. To further customize your work space, choose the height-adjustable stand or one of our mounting options, like the extendable arm.
An all-in-one with oomph.
Give your workforce a real productivity boost. ThinkCentre M90z features all-new 2010 Intel Core i series processors with Turbo Boost Technology, which scales power dynamically based on usage needs for optimal processing and energy efficiency. You can even speed your boot-up time to as fast as 35 seconds and shutdown time to as fast as nine seconds with our exclusive Lenovo Enhanced Experience for Windows 7 certification. Standard on the M90z!
Control at your fingertips.
For more intuitive PC interaction, opt for our multitouch panel (Multitouch screen is optionally available on models with Windows 7 Home Premium and Windows 7 Professional operating systems only).Pan, zoom, rotate, right-click and more on the full high-definition screen. You can even control hardware functions like volume, mute, camera preview, sleep mode, microphone and system lock from your multitouch screen using our SimpleTap software. And because the touch screen is a normal glass overlay, you can safely clean and disinfect it—perfect for healthcare personnel!
Double vision.
See more at once with the dual-display mode. Simply connect another monitor using the onboard DisplayPort to increase your screen space. ThinkCentre M90z can also function as a standalone monitor via a VGA input, letting you work with your ThinkPad laptop on two screens!
Specifications
Family: ThinkCentreSeries: M
ProductCode: 0870A6U
Category: All-in-One PCs/Workstations
Display
Display diagonal:
58.4 cm (23")
Touchscreen:
Yes
Touch technology:
Multi-touch
Display brightness:
250 cd/m²
Processor
Processor family:
Intel® Core™ i5
Processor manufacturer:
Intel
Processor model:
i5-650
Processor frequency:
3.2 GHz
Processor generation:
Intel® Core™ i5
Processor cores:
2
Processor threads:
4
Processor boost frequency:
3.46 GHz
Processor cache:
4 MB
Processor cache type:
Smart Cache
System bus rate:
2.5 GT/s
Thermal Design Power (TDP):
73 W
PCI Express slots version:
2.0
Processor socket:
LGA 1156 (Socket H)
Processor lithography:
32 nm
Processor operating modes:
64-bit
Stepping:
C2
Bus type:
DMI
Processor codename:
Clarkdale
Processor series:
Intel Core i5-600 Desktop Series
FSB Parity:
No
Maximum number of PCI Express lanes:
16
PCI Express configurations:
1x16, 2x8
Tcase:
72.6 °C
Number of Processing Die Transistors:
382 M
CPU multiplier (bus/core ratio):
24
Processing Die size:
81 mm²
Maximum internal memory supported by processor:
16 GB
Conflict-Free processor:
No
Memory types supported by processor:
DDR3 1066/1333
Memory bandwidth supported by processor (max):
21 GB/s
Memory channels supported by processor:
Dual
ECC supported by processor:
No
Memory
Internal memory:
4 GB
Maximum internal memory:
8 GB
Internal memory type:
DDR3-SDRAM
Memory clock speed:
1333 MHz
Memory layout (slots x size):
2 x 2 GB
Storage
Total storage capacity:
500 GB
Optical drive type:
DVD Super Multi
Number of HDDs installed:
1
HDD capacity:
500 GB
HDD speed:
7200 RPM
HDD size:
3.5"
HDD interface:
SATA II
Card reader integrated:
No
Graphics
Discrete graphics card model:
Intel® HD Graphics
On-board graphics card:
Yes
On-board graphics card model:
Intel® HD Graphics
On-board graphics card family:
Intel® HD Graphics
On-board graphics card base frequency:
733 MHz
Number of displays supported (on-board graphics):
2
Audio
Built-in microphone:
Yes
Audio system:
HD
Camera
Built-in camera:
Yes
Network
Wi-Fi:
Yes
Ethernet LAN:
Yes
Bluetooth:
No
Ethernet LAN data rates:
10,100,1000 Mbit/s
Ports & interfaces
USB 2.0 ports quantity:
6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
0
HDMI ports quantity:
0
Ethernet LAN (RJ-45) ports:
1
VGA (D-Sub) ports quantity:
1
DisplayPorts quantity:
1
DVI port:
No
Headphone outputs:
1
Microphone in:
Yes
DC-in jack:
Yes
Firewire (IEEE 1394) ports:
0
PS/2 ports quantity:
0
Serial ports quantity:
0
Design
Product colour:
Black
Cable lock slot:
Yes
Cable lock slot type:
Kensington
Software
Operating system installed:
Windows 7 Professional
Operating system architecture:
64-bit
Processor special features
Intel® Turbo Boost Technology:
1.0
Intel® Hyper Threading Technology (Intel® HT Technology):
Yes
Intel® My WiFi Technology (Intel® MWT):
No
Intel® Anti-Theft Technology (Intel® AT):
No
Intel® Wireless Display (Intel® WiDi):
No
Enhanced Intel SpeedStep Technology:
Yes
Intel® Quick Sync Video Technology:
No
Intel® Clear Video HD Technology (Intel® CVT HD):
Yes
Intel Clear Video Technology:
No
Intel® Insider™:
No
Intel® InTru™ 3D Technology:
No
Intel Flex Memory Access:
No
Intel® AES New Instructions (Intel® AES-NI):
Yes
Intel Trusted Execution Technology:
Yes
Intel Enhanced Halt State:
Yes
Intel VT-x with Extended Page Tables (EPT):
Yes
Intel Demand Based Switching:
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID):
No
Intel 64:
Yes
Execute Disable Bit:
Yes
Idle States:
Yes
Thermal Monitoring Technologies:
No
Processor package size:
37.5 x 37.5 mm
Supported instruction sets:
SSE4.2
Physical Address Extension (PAE):
36 bit
CPU configuration (max):
1
Embedded options available:
No
Graphics & IMC lithography:
45 nm
Intel Virtualization Technology for Directed I/O (VT-d):
Yes
Intel Virtualization Technology (VT-x):
Yes
Intel Dual Display Capable Technology:
Yes
Intel FDI Technology:
Yes
Intel Rapid Storage Technology:
No
Intel Fast Memory Access:
No
Processor ARK ID:
43546
Weight & dimensions
Width (with stand):
560 mm
Depth (with stand):
116 mm
Height (with stand):
443 mm
Weight (with stand):
11.5 kg
Certificates
Certification:
RoHS
Sustainability
Sustainability certificates:
EPEAT Gold, ENERGY STAR
Packaging content
Mouse included:
Yes
Keyboard included:
Yes
Remote control included:
No
Other features
Graphics card family:
Intel
TV tuner integrated:
No
BD interface type:
SATA
Cabling technology:
10/100/1000Base-T(X)
Chassis type:
All-in-One
Display:
LCD TFT
Display included:
Yes
Megapixel (approx.):
2 MP
Networking features:
Gigabit Ethernet
Number of 3.5" bays:
1
Number of processors installed:
1
Parallel ports quantity:
0
Power supply:
150 W
Speakers:
2
Intel segment tagging:
Enterprise, Professional
